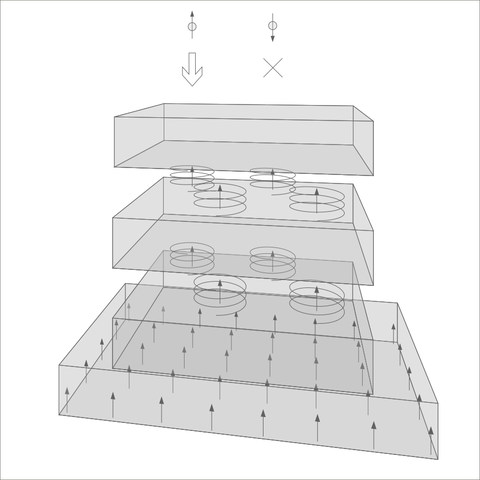

CISS spin filter
A layered heterostructure of a chirality-induced spin selectivity filter.
Start your figure from a finished schematic
These device schematics were made in Superlattix, and each comes with the model it was made from. Open a model in the editor and turn it into your own figure: view it from the angle you need, change what doesn't match your device, and export a new image. No account and no manual needed.
- Pick a schematic below.
- Download its model.
- Open the model in the Superlattix editor and adapt it.

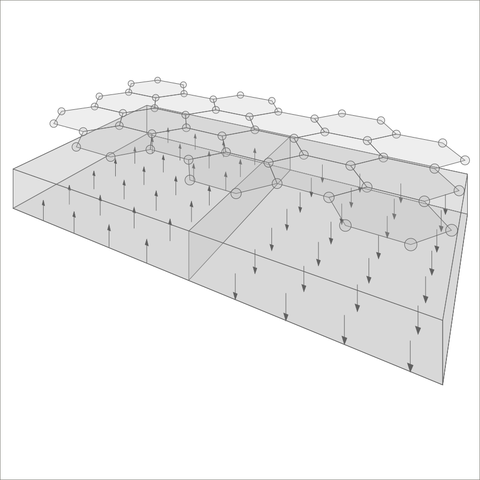

Graphene on a ferromagnetic substrate
A graphene layer over two magnetic domains separated by a sharp domain wall.
The model files follow the published Superlattix schema. Building something on the format? We would like to hear about it: [email protected].
